Creating/editing the Material File

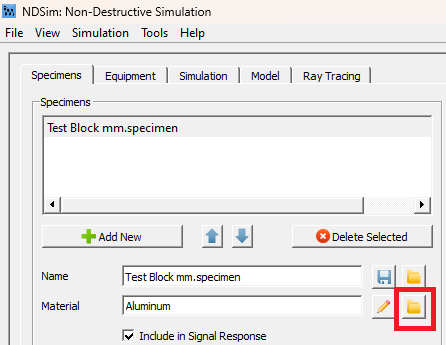

1. You can open a material file by clicking the folder icon next to the material section.

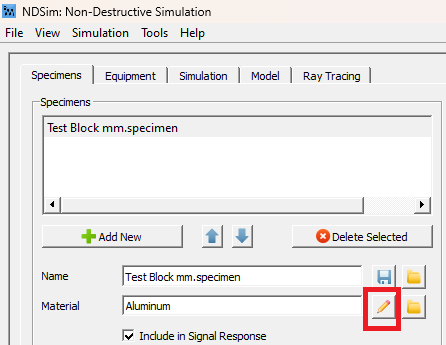

2. You can edit the current material file by clicking on the pencil icon next to the material section.

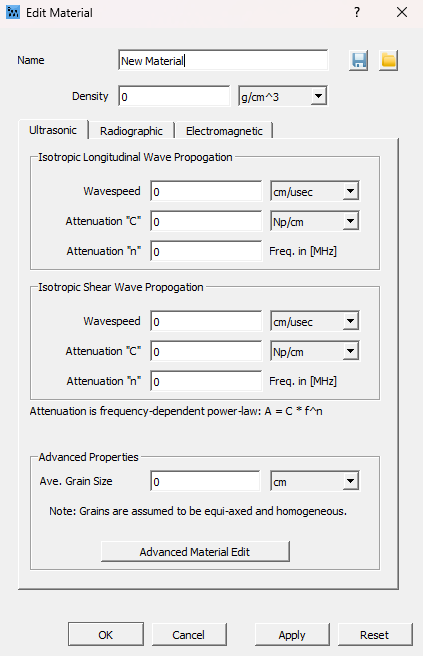

3. From the material window, you can edit the parameters of the material.

4. You can create a new material file by clicking on "Edit Material" under the tool menu.
